Brand Name :gaode
Place of Origin :Jiangsu, China
Certification :IS09001:2000
Packaging Details :Nude packing
Supply Ability :100 Set/Sets per Year
Price :$150,000.00 - $300,000.00/sets
Condition :New
Voltage :380v
Dimension(L*W*H) :None
Year :None
Warranty :6months
Key Selling Points :High Productivity
Applicable Industries :Manufacturing Plant
Type :Shearing Machines
After-sales Service Provided :Field maintenance and repair service, Online support, Video technical support
Rated Power :90.5kw
Weight :None
Product Name :HBS Hydraulic baler &Shear machinery
color :Customised
Control system :PLC
Max Cutting Force :400t
Feed Opening :4800*2240mm
Bale size :650*550mm
Certificate :ISO9001:2008,CE
Production Rate :5.5-15 ton/hr
Cutting Frequency :3-4times/min
Press box size :5000*1600*1250mm
Port :ShangHai port China
Contact Now

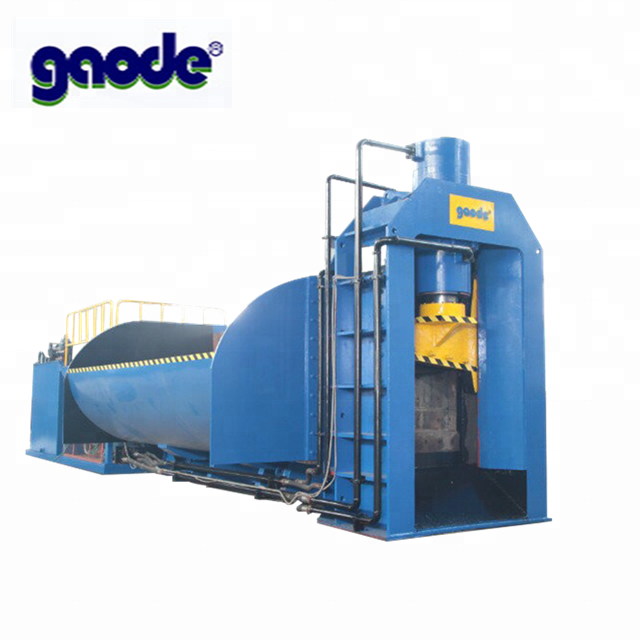

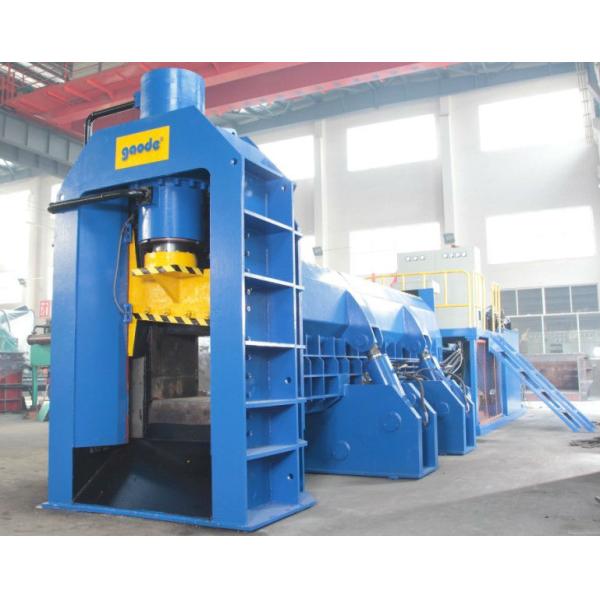

HBS Heavy duty shearing scrap materials cutting baler used sheet metal shears
Applications:
The hydraulic baler & shear machinery is suitable for the cutting of scrap materials. Metal pieces are pressed 2- or 3-dimensionally by using the pressing lid, wing and feeding pusher, and cut or broken into pieces.
The machine is able to :
1. Pre-compress and cut scrap 2.Cut bars and profiles 3. Package light scrap 4. Squeeze and cut car bodies
HBS-3150 For reference
No.
Technical Specification
Remark
1
Press Box Size(L*W*H)
5000*1600*1250
2
Bale Size(L*W*H)
700*500mm
3
Hydraulic System Pressure
25 MPa
4
Total Motor
110KW
5
Power
380V/3PH,50Hz
6
Blade Length
800mm
7
Shearing Frequency (times/min)
3-5 time/min
8
Capacity(Ton/Hour)
4-12
9
Max Cutting Force
(material Tensile Strength no more than 440MPa)
Round TeelΦ120mm
Billet 110*110mm
Steel Plate 50*600mm
10
Motor
Model
Y200L2-6
Nominal Power
55KW
Nominal Speed
970rmp
Quantity
2 pieces
11
Hydraulic Pump
Model
250YCY14-1B
Nominal Pressure
31.5MPa
Nominal Outflow
250ml/r
Quantity
2 Pieces
12
Equipment Outline Dimension
11300*2800*3500(Flank Expansion)
L*W*H
11300*2200*3500mm(Flank Collapsed)
L*W*H
13
Floor Space
14000*4000mm
L*W
14
Control System
PLC Automatic Control
15
Cooling System
Oil - steam heat exchanger
Company Information
Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.Our company was first inaugurated in 2003.
Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Finished Products
Our Exhibition
Our Certification

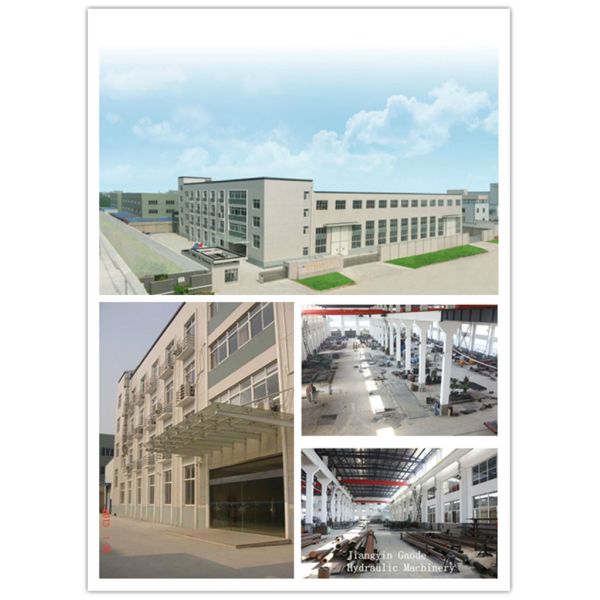

Welcome To Our Factory
Our Services
6months guarantee for whole machine.
24hours technical support by email.
Calling or door to door service.
User manual and detailed video.
FAQ
1,Q;Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory. Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
5,Q: Can we order one set machine?
A:Yes, you can.
